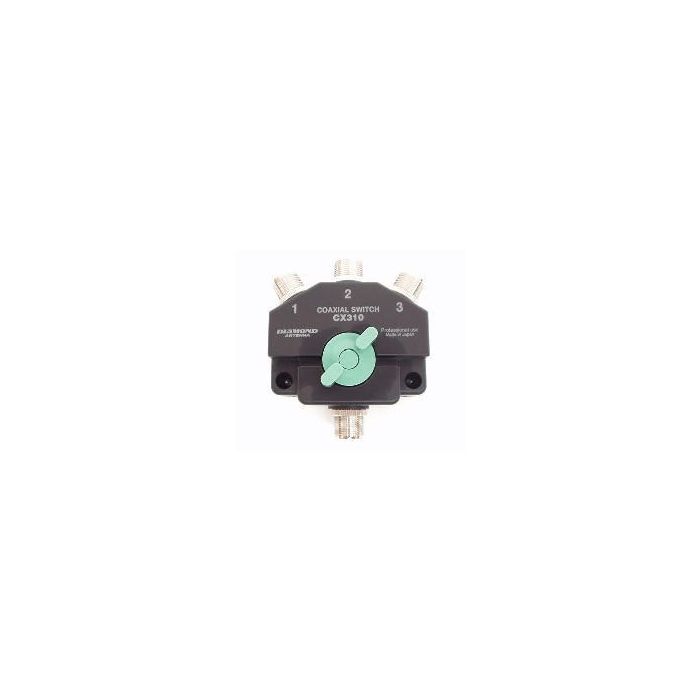

Diamond CX-310A Coaxswitch
Art.nr. 1476
Op voorraad
Excl. BTW
€ 92,50
€ 76,45
3-way coax switch DC-800 M-conn.
Description
Dimensions:80Wx41Hx60Dmm
Weight:575g
Frequency range:DC to 800MHz
Impedance:50ohms - Connector:M-J
VSWR:Less than 1.1:1(DC to 500MHz),less than 1.2:1(500 to 1000MHz)
Insertion loss:Less than 0.1dB(DC to 500MHz),less than 0.15dB(500 to 1000MHz)
Isolation:More than 60dB(DC to 500MHz),more than 50dB(500 to 800MHz)
Max.power rating(When VSWR is less than 1.2:1):1.5KW(DC to 30MHz),1KW(30 to 150MHz),500W(150 to 800MHz)
Meer Lezen
| Vrachttype | N |
|---|---|
| Vergunning | Nee |
| Merk | Diamond |
