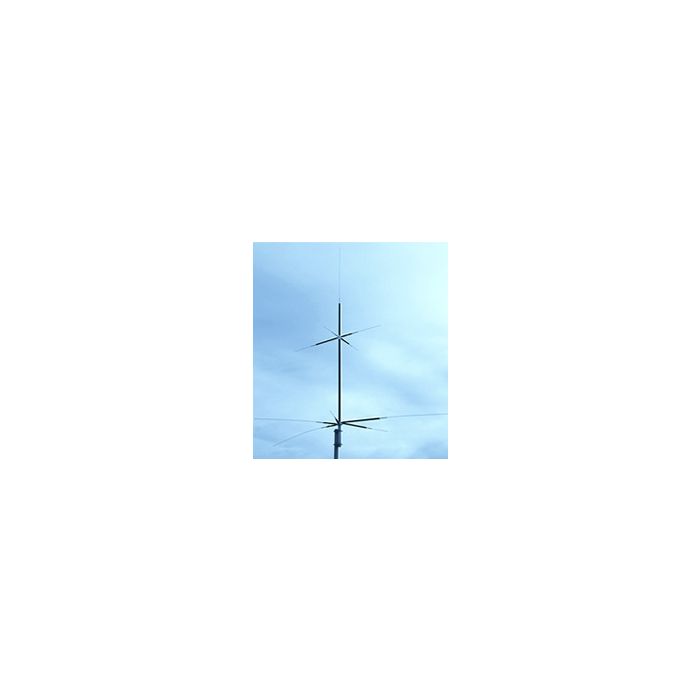

Diamond CPVU-8
Description
CPVU8: 3.5-7-14-21-28(29)-50-144-430MHz
- Length:2.7m
- Weight:2.4kg
- Frequency:3.500-3.575MHz-7.00-7.10MHz-14.00-14.35MHz-21.00-21.45MHz-28.00-29.70MHz (The element is required at 29.00MHz)-50-52MHz-144-146MHz-430-440MHz
- Gain:2.15dBi (144MHz),5.5dBi (430MHz)
- Max. Power rating:200W SSB, 50W CW (3.5-7-14-21-28-50MHz),150W FM (144-430MHz)
- Impedance:50
- VSWR:Less than 2.0 (3.5-7-14-21-28-50MHz),Less than 1.5 (144-430MHz)
- Mast diameter accepted:30mm to 62mm
- Connector:M Type:1-4(3.5-7-14-21-28-50MHz) 1-2?(144MHz) 2x5-8?(430MHz)
Vrachttype | N |
---|---|
Vergunning | Nee |
Merk | Diamond |
