Diamond A-144S10R2
Art.nr. 545
Op voorraad
Excl. BTW
€ 115,00
€ 95,04

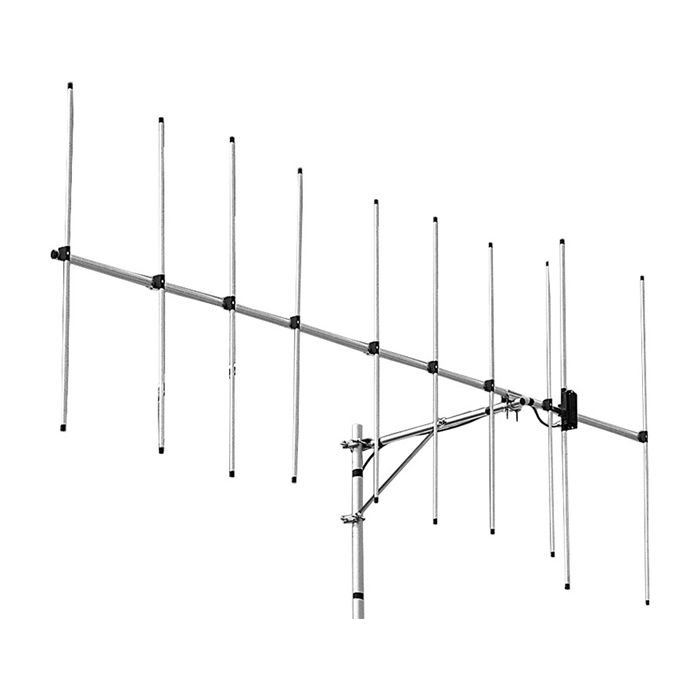

2 mtr Beam Antenne. Yagi, 10 elementen .Afmetingen: Boom: 2,13 m is; Longest el: 1,09 meter
Description
Single
| Model | A144S5R(×2) | A144S10R(×2) |
| Frequency | 144 to 146MHz | |
| Gain | 9.1dBi | 11.6dBi |
| Max. power rating | 50W FM | |
| Impedance | 50ohms | |
| VSWR | Less than 1.3:1 | |
| Weight | 0.63kg | 1.1kg |
| Dimensions | 950x1090x73mm | 2130x1090x73mm |
| Mast diameter accepted (mm) | 25mm to 47mm (with support boom element for single antenna) | |
| Connector | MJ | |
| FB ratio | More than 14dB | More than 15dB |
| Wind surface area | 0.1m2 | 0.16m2 |
| Turning radius | approx. 860mm | approx.1450mm |
¦Parallel stack
| Model | A144S5R(×2) | A144S10R(×2) |
| Frequency | 144 to 146MHz | |
| Gain | 11.5dBi | 13.5dBi |
| Max. power rating | 100W FM | |
| Impedance | 50ohms | |
| VSWR | Less than 1.5:1 | |
| Weight | 2.2kg | 3.2kg |
| Dimensions | 950x1090x1320mm | 2130x1090x1320mm |
| Mast diameter accepted (mm) | 25mm to 56mm (with support boom element for dual antenna parallel stacked antennas) | |
| Connector | MJ | |
| FB ratio | More than 16dB | More than 17dB |
| Wind surface area | 0.19m2 | 0.31m2 |
| Turning radius | approx.870mm | approx.1465mm |
Single
| Model | A144S5R(×2) | A144S10R(×2) |
| Frequency | 144 to 146MHz | |
| Gain | 9.1dBi | 11.6dBi |
| Max. power rating | 50W FM | |
| Impedance | 50ohms | |
| VSWR | Less than 1.3:1 | |
| Weight | 0.63kg | 1.1kg |
| Dimensions | 950x1090x73mm | 2130x1090x73mm |
| Mast diameter accepted (mm) | 25mm to 47mm (with support boom element for single antenna) | |
| Connector | MJ | |
| FB ratio | More than 14dB | More than 15dB |
| Wind surface area | 0.1m2 | 0.16m2 |
| Turning radius | approx. 860mm | approx.1450mm |
¦Parallel stack
| Model | A144S5R(×2) | A144S10R(×2) |
| Frequency | 144 to 146MHz | |
| Gain | 11.5dBi | 13.5dBi |
| Max. power rating | 100W FM | |
| Impedance | 50ohms | |
| VSWR | Less than 1.5:1 | |
| Weight | 2.2kg | 3.2kg |
| Dimensions | 950x1090x1320mm | 2130x1090x1320mm |
| Mast diameter accepted (mm) | 25mm to 56mm (with support boom element for dual antenna parallel stacked antennas) | |
| Connector | MJ | |
| FB ratio | More than 16dB | More than 17dB |
| Wind surface area | 0.19m2 | 0.31m2 |
| Turning radius | approx.870mm | approx.1465mm |
| Vrachttype | N |
|---|---|
| Vergunning | Nee |
| Merk | Diamond |
