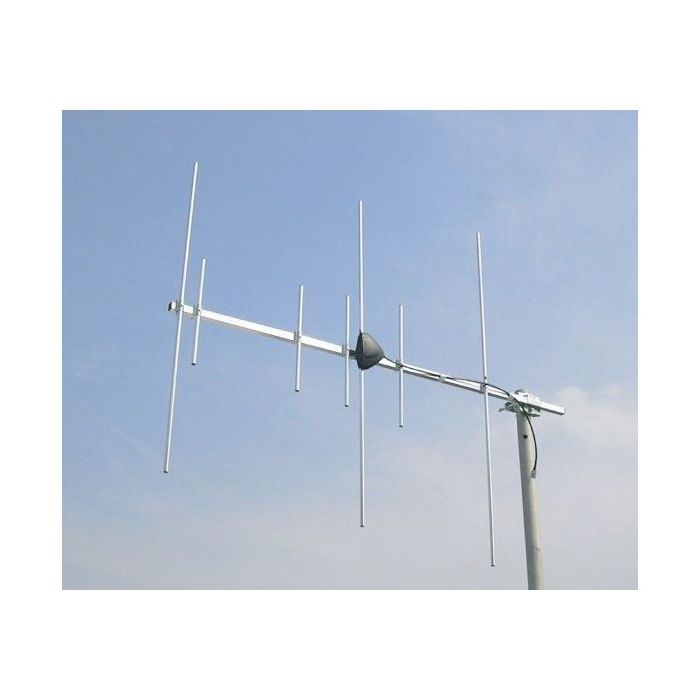

Diamond A-1430S7 Beam Antenne

Art.nr. 1490
Op voorraad
Excl. BTW € 149,00 € 123,14
144/430MHz(2m/70cm) Boom length:1.25m / Element length:1.02m (Max) / Weight:0.95kgs 7 Elementen, MJ

Description

  • Boom length:1.25m - Element length:1.02m (Max)
  • Weight:0.95kgs
  • Frequency:144-430MHz (2m-70cm)
  • Gain:7.5dBi (144MHz), 9.3dBi (430MHz)
  • Max. power rating:100W (FM) - Impedance:50? - SWR:Less than 1.5
  • Connector:MJ - Rated wind velocity:35m-sec.
  • Mast diameter Accepted:?25-?62 - Wind surface area:0.17
  • Type:3-elements beam antenna (144MHz) - 5-elements beam antenna (430MHz)
  • FB ration:More than 11.5dB (144MHz), More than 8.0dB (430MHz)
  • Turing radius:Approx. 1.2m
Meer Lezen
Meer informatie
Vrachttype N
Vergunning Nee
Merk Diamond
