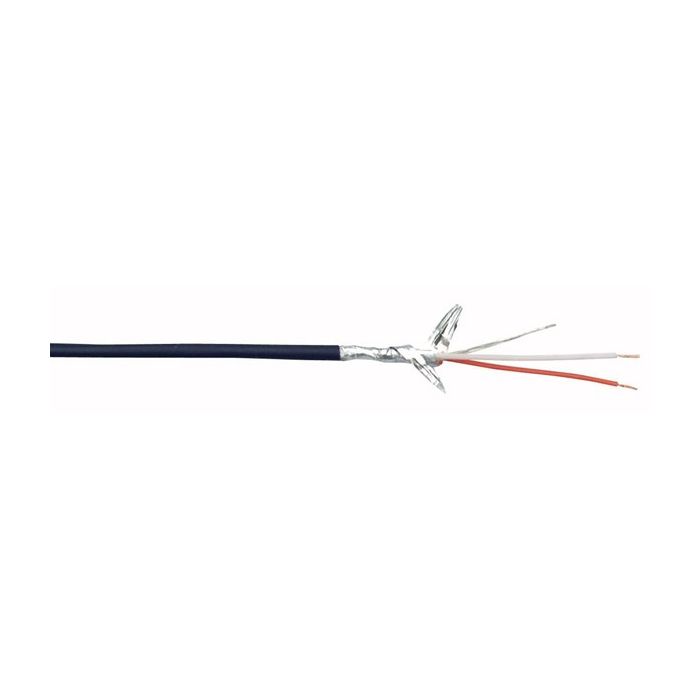

Dap-Audio MK-SPIN D9421U

Specifications: • Conductor drains Ø mm: OFC 18 x 0,10 • Conductor insulation: PE red+white • Conductor insulation: 1,0 (Ø in mm) • Filler material: - • 1st shield: alufoil + tinned drainwire 7 x 0,18 • 2nd shield: - • Outer isolation: PVC dark blue • Outer isolation: 3 (Ø in mm) Conductor resistance: 160 Ohm-Km Shield resistance: - Capacity Inner conductor: 60 pF-m Cap. Inner conduct. Shield - Inner conduct.: - Working temperature min. - max.: -20~60 °C Working Voltage overflash: 30V Nom Impedance: 110 Ohm
