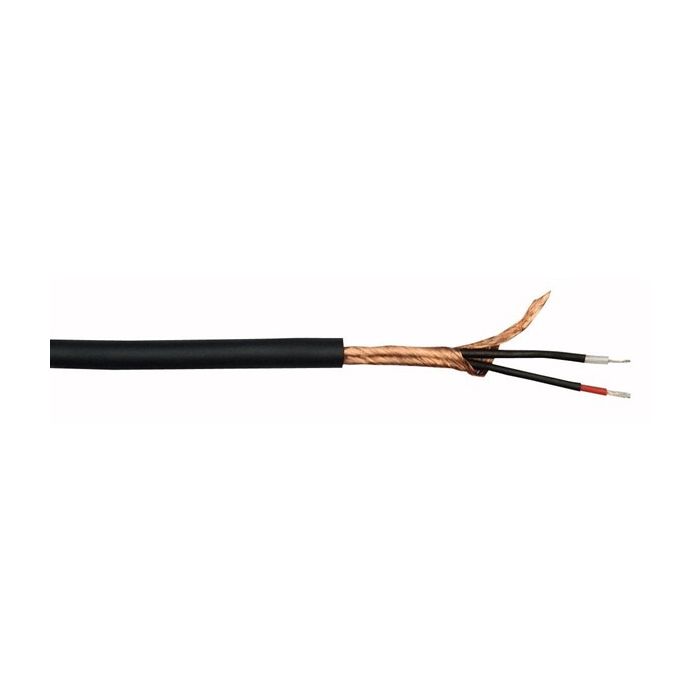

Dap-Audio MC226 D9432B p-100mtr

Specifications: • Conductor drains Ø mm: OFC 15 x 0,12 • Conductor insulation: PE red+white • Conductor insulation: 1,5 (Ø in mm) • Filler material: - • 1st shield: 2 x Conductive plastic • 2nd shield: OFC twisted 96 x 0,12 • Outer isolation: PVC black, blue, red, yellow, green • Outer isolation Ø in mm: 6 Conductor resistance: 90 Ohm-Km Shield resistance: 25 Ohm-Km Capacity Inner conductor: 60 pF-m Cap. Inner conduct. Shield - Inner conduct.: 78 pF-m Working temperature min. - max.: -20~60 °C Working Voltage overflash: 30V Nom Impedance: 110 Ohm
