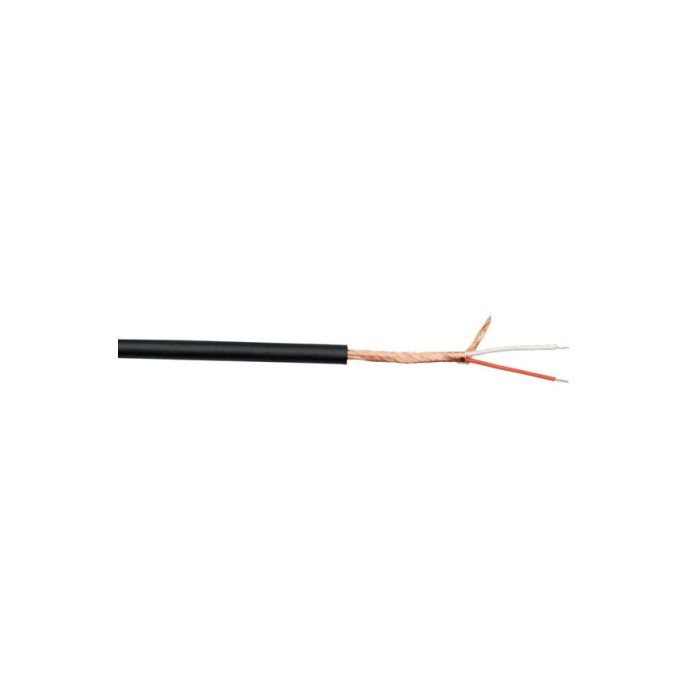

Dap-Audio MC205B D9434B p-100mtr

Specifications

• Conductor drains Ø mm: OFC 10 x 0,10
• Conductor insulation: PE red+white
• Conductor insulation: 1,0 (Ø in mm)
• Filler material: -
• 1st shield: OFC twisted 40 x 0,12
• 2nd shield: -
• Outer isolation: PVC matte black
• Outer isolation Ø in mm: 5

Conductor resistance: 160 Ohm/Km
Shield resistance: -
Capacity Inner conductor: 60 pF/m
Cap. Inner conduct. Shield
/ Inner conduct.: -
Working temperature min. / max.: -20~60 °C
Working Voltage overflash: 30V
Nom Impedance: 110 Ohm
