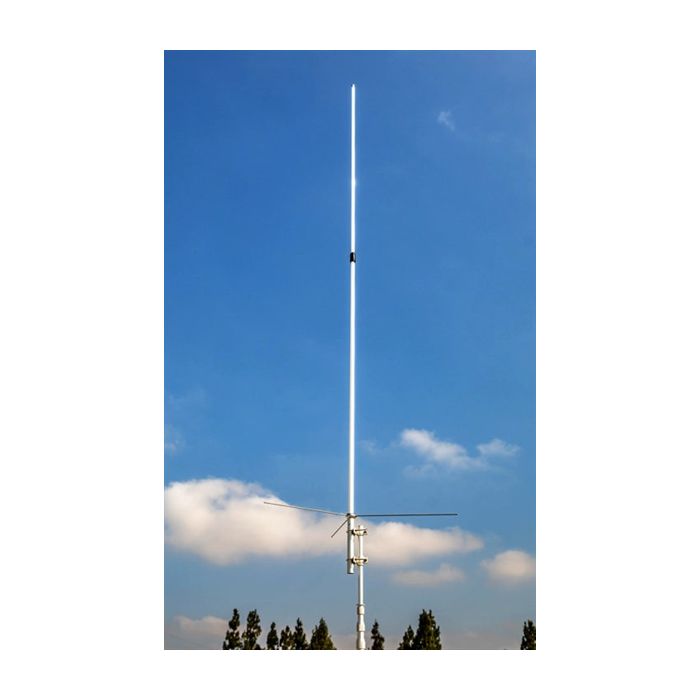

Comet GP-98N Base antenna

Art.nr. 9543
Op voorraad
Excl. BTW € 219,00 € 180,99
Tri-Band antenne. 144/433/1200 Mhz, L=2,94m (KAN NIET WORDEN VERZONDEN, ALLEEN OPGEHAALD)

Description

Tri-Band 146/446/1200MHz
Gain & Wave:
146MHz   6.5dBi     5/8 wave x 2
446MHz   9.0dBi     5/8 wave x 5
1200MHz 13.5dBi   5/8 wave x 12
VSWR: 1.5:1 or less
Max Power:  150W/100W 1200MHz
Length: 9' 8?
Weight:  3 lbs 4 ozs
Connector:  N-Type
Construction:  Heavy-duty fiberglass, 2 sections

Tri-Band 146/446/1200MHz

Gain & Wave:

146MHz   6.5dBi     5/8 wave x 2

446MHz   9.0dBi     5/8 wave x 5

1200MHz 13.5dBi   5/8 wave x 12

VSWR: 1.5:1 or less

Max Power:  150W/100W 1200MHz

Length: 294 cm

Weight:  1,6 kg

Connector:  N-Type

Construction:  Heavy-duty fiberglass, 2 sections

Meer Lezen
Meer informatie
Vrachttype L
Vergunning Nee
Merk Comet

Downloads

GP-98.pdf
