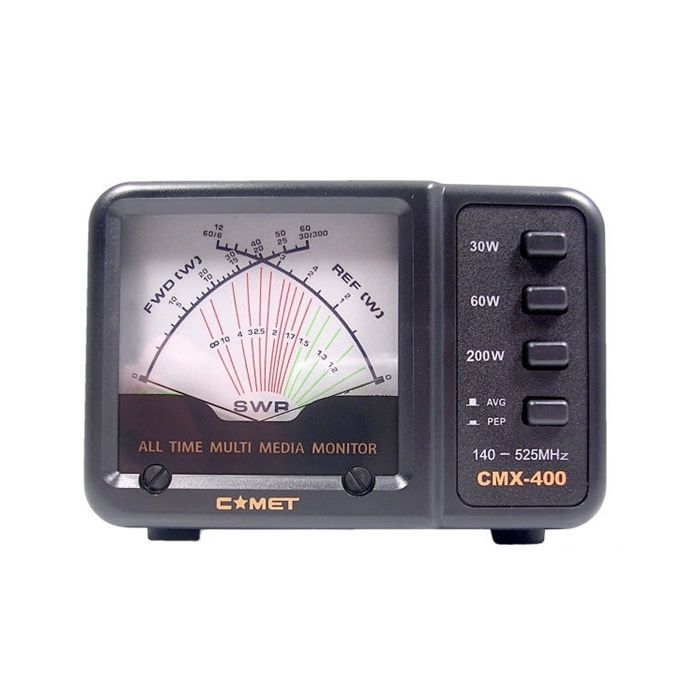

Comet CMX-400 SWR Power meter

Art.nr. 6773
Op voorraad
Excl. BTW € 158,99 € 131,40
140-525 Mhz Cross Needle VHF/UHF SWR/Power Meter

Description

New CMX-400 meter, up to 200 watts power handling on VHF/UHF 140~525Mhz. Large, clear cross needle display reads FWD/REF and SWR simultaneously, and to minimize power loss CMX-400 has a built in low loss sensor. The meter is very well illuminated in red and green.
Comet CMX-400
VHF/UHF SWR/Power meter
Frequency Range - 140~525Mhz
Power Handling - up to 200 Watts
Power Ranges 30/60/200 Watts
Impedance - 50 Ohms
VSWR - 1.2 Or Less
Insertion Loss - 0.2dB Or Less
Min Power for SWR Measurement - approx 6 watts
Connector SO-239 type
Power requirements for Illumination - 11~15 Volts
Dimensions - 120 x 80 x 105 mm WHD
Weight - approx 630 g

New CMX-400 meter, up to 200 watts power handling on VHF/UHF 140~525Mhz. Large, clear cross needle display reads FWD/REF and SWR simultaneously, and to minimize power loss CMX-400 has a built in low loss sensor. The meter is very well illuminated in red and green.


  • VHF/UHF SWR/Power meter
  • Frequency Range - 140~525Mhz
  • Power Handling - up to 200 Watts
  • Power Ranges 30/60/200 Watts
  • Impedance - 50 Ohms
  • VSWR - 1.2 Or Less
  • Insertion Loss - 0.2dB Or Less
  • Min Power for SWR Measurement - approx 6 watts
  • Connector SO-239 type
  • Power requirements for Illumination - 11~15 Volts
  • Dimensions - 120 x 80 x 105 mm WHD
  • Weight - approx 630 g

Meer Lezen
Meer informatie
Vrachttype N
Vergunning Nee
Merk Comet
