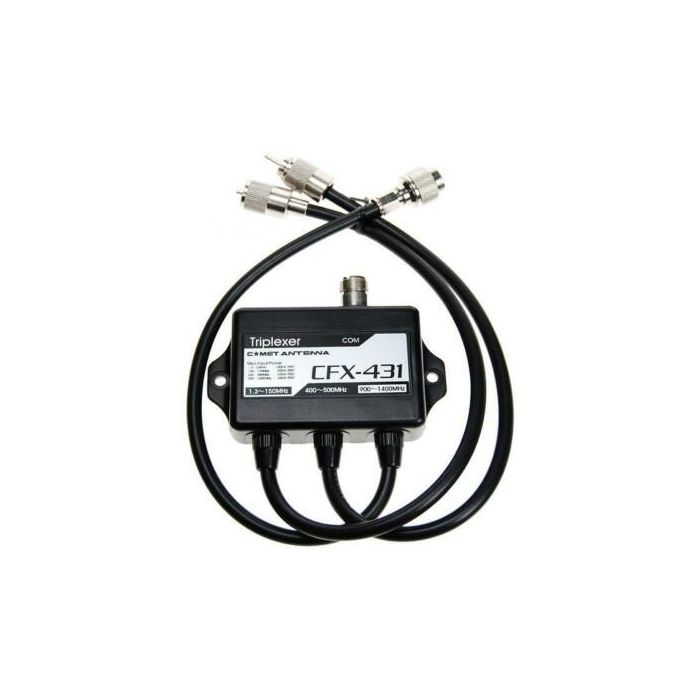

Comet CFX-431A Triplexer

Art.nr. 9613

Op voorraad

Excl. BTW € 99,95 € 82,60

New version for Icom IC-9700, Triplexer: 1.3-150 MHz / 350-500 MHz / 900-1400 MHz

The Comet CFX 431A Triplexer, for transmitting and rceiving all three bands 144/433/1200 Mhz at the same time.

The combined high quality filters of the CFX 431A work to prevent occurence of TVI, and the isolation between the connectors is over 50dB.

Features :

BandPass Fequency and Input Loss : 1.3 - 150 Mhz Less than 0.2dB

BandPass Fequency and Input Loss : 350 - 500 Mhz Less than 0.3dB

BandPass Fequency and Input Loss : 900 -1400 Mhz Less than 0.4dB

Impedance : 50 Ohms

V.S.W.R. Less than 1:1.2

Maximum Power 1.3 - 60 Mhz 1000 Watts (PEP)

Maximum Power 100 - 500 Mhz 800 Watts (PEP)

Maximum Power 400 - 500 Mhz 500 Watts (PEP)

Maximum Power 900 - 1400 Mhz 200 Watts (PEP)

Input N Type Socket

Output Leads, 1 x Pl259 (1.3 - 150 MHz), 2 x N Type (350-500 / 900-1400 MHz) Plugs Fitted

Size : W66 x D90 x H26mm

The Comet CFX 431A Triplexer, for transmitting and rceiving all three bands 144/433/1200 Mhz at the same time.

The combined high quality filters of the CFX 431A work to prevent occurence of TVI, and the isolation between the connectors is over 50dB.

Features :

BandPass Fequency and Input Loss : 1.3 - 150 Mhz Less than 0.2dB
BandPass Fequency and Input Loss : 350 - 500 Mhz Less than 0.3dB
BandPass Fequency and Input Loss : 900 -1400 Mhz Less than 0.4dB
Impedance : 50 Ohms
V.S.W.R. Less than 1:1.2
Maximum Power 1.3 - 60 Mhz 1000 Watts (PEP)
Maximum Power 100 - 500 Mhz 800 Watts (PEP)
Maximum Power 400 - 500 Mhz 500 Watts (PEP)
Maximum Power 900 - 1400 Mhz 200 Watts (PEP)
Input N Type Socket
Output Leads, 1 x Pl259 (1.3 - 150 MHz), 2 x N Type (350-500 / 900-1400 MHz) Plugs Fitted
Size : W66 x D90 x H26mm
