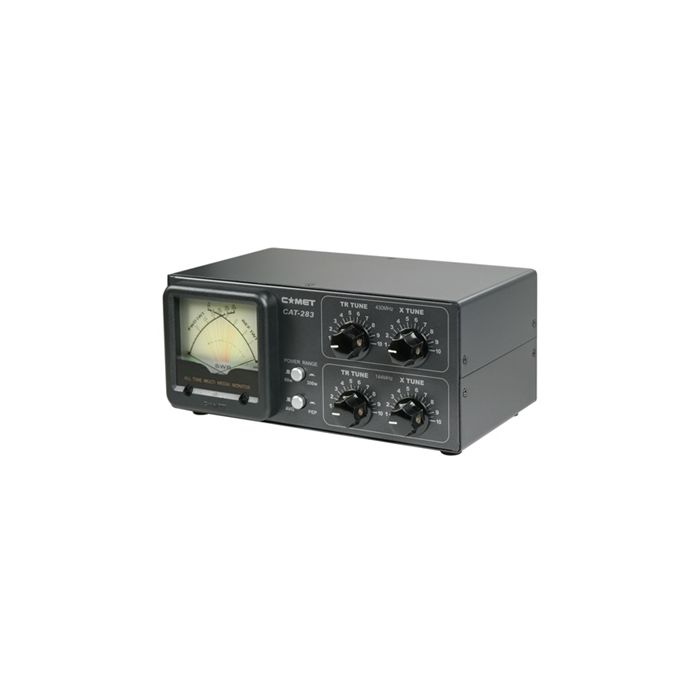

Comet CAT-283 VHF-UHF Antenne tuner

Art.nr. 1984

Op voorraad

Excl. BTW € 349,50 € 288,84

Frequency range: 125-210 MHz/400-450 MHz, 2 x PL-259 Female (SO-239),Max. input power: 250 Watts

The Comet CAT-283 covers a frequency range of 144/430 MHz and handles up to 250 Watts power. The built-in duplexer helps tuning each band separately.

Cross needle display shows FWD, REF and PWR simultaneously. Display beautifully illuminated when connected to the power supply.

Technical specifications:

Frequency range: 125-210 MHz / 400-450 MHz

Input impedance: 50 Ohm

Out impedance: 15-200 Ohm

Max. input power: 250 Watts (FM)

Min. power for SWR measurement: 6 Watts

Tolerance: +/- 10%

Connector: M-J type (SO-239)

Lighting power supply: DC 11-15 volt, approx 250 mA

Dimensions in: (W) 218 x (H) 93 (98*) x (D) 120 (152*) mm. * including connectors and knobs.

Weight: approx 1.4 kg

The Comet CAT-283 covers a frequency range of 144/430 MHz and handles up to 250 Watts power. The built-in duplexer helps tuning each band separately.

Cross needle display shows FWD, REF and PWR simultaneously. Display beautifully illuminated when connected to the power supply.

Technical specifications:

Frequency range: 125-210 MHz / 400-450 MHz
Input impedance: 50 Ohm
Out impedance: 15-200 Ohm
Max. input power: 250 Watts (FM)
Min. power for SWR measurement: 6 Watts
Tolerance: +/- 10%
Connector: M-J type (SO-239)
Lighting power supply: DC 11-15 volt, approx 250 mA
Dimensions in: (W) 218 x (H) 93 (98*) x (D) 120 (152*) mm. * including connectors and knobs.
Weight: approx 1.4 kg
