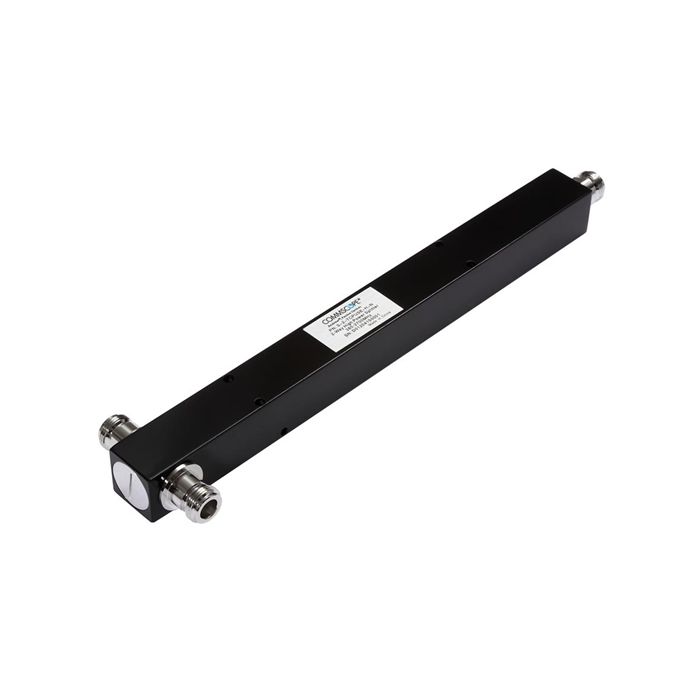

Andrew S-2-TCPUSE-H-N High Power Splitter
Art.nr. 4196
Niet op voorraad
Excl. BTW
€ 95,00
€ 78,51
3 dB Multiband Two-way Reactive Power Splitter, 380 - 2700 MHz, N female, 50 Ohm
Description
General Specifications
Device Type Splitter
Interface N Female
Color Black
Electrical Specifications
Operating Frequency Band 698 – 2700 MHz
3rd Order IMD 150 dBc (relative to carrier)
3rd Order IMD Test Method Two +43 dBm carriers
Average Power, maximum 300 W
Dissipative Loss at Frequency Band 0.1 dB @ 698–2700 MHz
Impedance 50 ohm
Peak Power, maximum 3 kW
Power Rating, Splitting 300 W
Reflected Power, maximum 300 W
Return Loss 20.8 dB
Split Loss 3.0 dB
VSWR 1.2:1
Mechanical Specifications
Inner Contact Plating Silver
Outer Contact Plating Trimetal
Environmental Specifications
Application Indoor/Outdoor
Ingress Protection Test Method IEC 60529:2001, IP65
Operating Temperature 25 °C to +85 °C (13 °F to +185 °F)
General Specifications
- Device Type Splitter
- Interface N Female
- Color Black
Electrical Specifications
- Operating Frequency Band 698 – 2700 MHz
- 3rd Order IMD 150 dBc (relative to carrier)
- 3rd Order IMD Test Method Two +43 dBm carriers
- Average Power, maximum 300 W
- Dissipative Loss at Frequency Band 0.1 dB @ 698–2700 MHz
- Impedance 50 ohm
- Peak Power, maximum 3 kW
- Power Rating, Splitting 300 W
- Reflected Power, maximum 300 W
- Return Loss 20.8 dB
- Split Loss 3.0 dB
- VSWR 1.2:1
Mechanical Specifications
- Inner Contact Plating Silver
- Outer Contact Plating Trimetal
Environmental Specifications
- Application Indoor/Outdoor
- Ingress Protection Test Method IEC 60529:2001, IP65
- Operating Temperature -10 °C to +85 °C (13 °F to +185 °F)
| Vrachttype | N |
|---|---|
| Vergunning | LET OP voor sommige apparatuur is een vergunning nodig. Controleer de locale wet en regelgeving. |
| Merk | Andrew |
