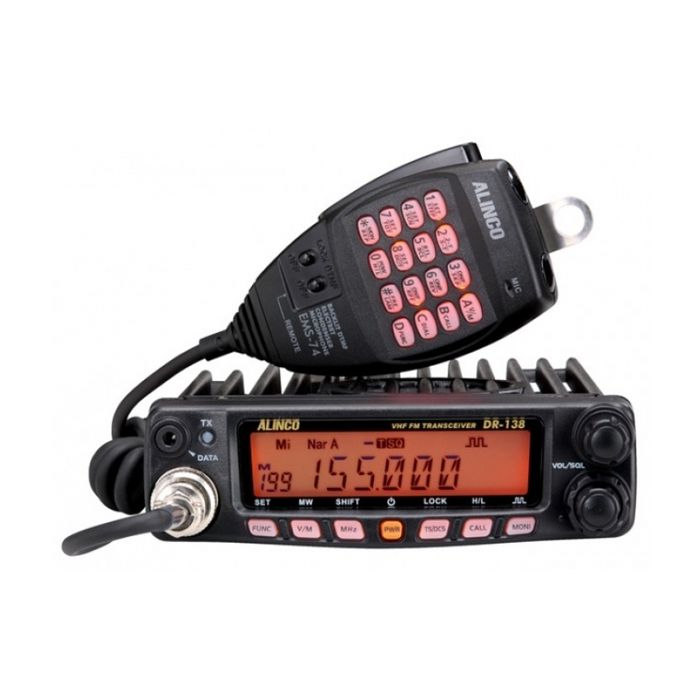

Alinco DR-138HE Mobile Transceiver

VHF 136-174 MHz, 60 watt FM transceiver with an alphanumeric display (up to seven characters)

The DR-138 comes with: EMS-74 DTMF Hand Mic, mobile bracket, DC cord and mounting hardware.

The DR-138H is a high technology PLL synthesized radio that delivers power and performance in a small package. User-friendly configuration and programmable features make the DR-138H the radio of choice for demanding amateur/professional operators.

• Frequency range - 144-146MHz
• Output power selectable 60W/25W/10W
• PC programmable 200ch
• Alphanumeric name tags
• Voice Compander (Reduce Noise & enhance audio clarity)
• Calling features built in;2-Tone, 5-Tone, 50 CTCSS, 114DCS, 4 Toneburst tones and DTMF/ANI decode
• Radio stun/kill/revive functions to protect your communication security
• Large, bright LCD and easy to operate backlit keys
• Multifunction, backlit microphone enables direct frequency entry & more from keypads
• Various scan modes, Key lock, Wide/Narrow operation
• Inversion scramble feature
• Channel Spacing 25KHz (Wide) 20KHz (Middle) 12.5KHz (Narrow)
• Channel step 2.5KHz,5KHz, 6.25KHz, 8.33KHz, 10KHz,12.5KHz, 15KHz, 20KHz, 25KHz, 30KHz, 50KHz
• Operating Voltage 13.8V DC ±15%
• Squelch Carrier/CTCSS/DCS/5Tone/2Tone/DTMF
• Frequency Stability ±2.5ppm
• Operating Temperature -20~+60
• Dimensions 145 (W) x 47 (H) x 190 (L)mm approx.
• Weight approx. 1.2kg
• Sensitivity
• (12dB Sinad) 0.25V 0.35V
• Adjacent Channel
• Selectivity 70dB 60dB
• Intermodulation 65dB 60dB
• Spurious Rejection 70dB 70dB
• Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~2.55KHz)
• Hum & Noise 45dB ?40dB
• Audio distortion 5%
• Audio power output 2W@10%
• Power Output 60W /25W/10W
• Modulation 16KF3E 11KF3E
• Adjacent Channel
• Power 70dB 60dB
• Hum & Noise 40dB 36dB
• Spurious Emission 60dB 60dB
• Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~2.55KHz)
• Audio Distortion 5%
